PAVE dual-sided hermetic seals and bi-directional will seal both pressure and vacuum in either or both directions. For pressures above 300 psi (20 bar), please check with the sales engineer if changing the pressure direction shown on the drawing. Significantly higher pressure ratings are normally available upon request along with lower temperature ratings of -60C, even -100C, or -200C.

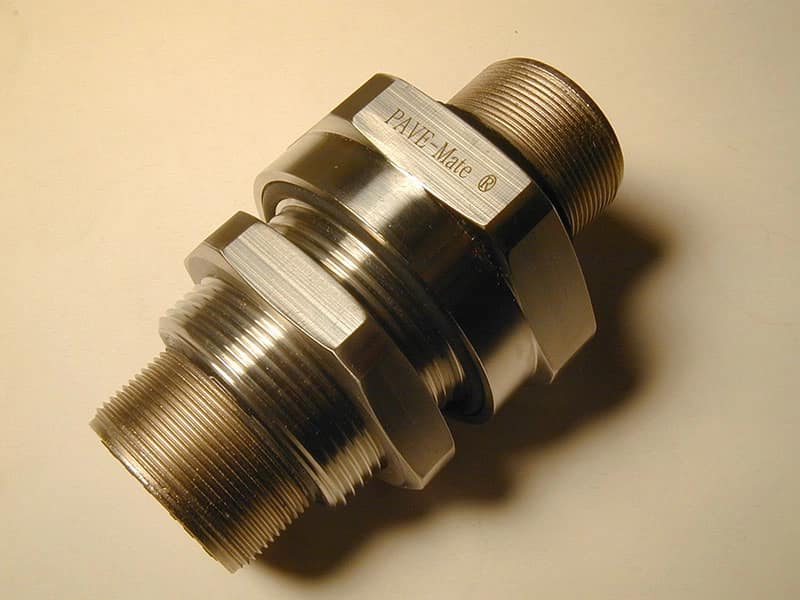

PAVE-Mate® I dual-sided hermetic sealed multi-pin circular electrical feedthrough connectors are dual-sided electrical male and female contact receptacles or plug connectors on each side of the bulkhead for low or high pressures or low or high vacuums. Signal, power, coaxial contacts, 2 – 128 contacts, #4 AWG – #26 AWG gold, silver or tin-plated copper alloy contacts, RJ45 Cat 5e Cat 6 Cat 7 RJ45 Ethernet, firewire, TBFH, USB 2.0, USB 3.0, MDR, or Pushthru for nuclear or laboratory glove boxes or thermocouple contacts. All our connectors and feedthroughs are hermetically sealed meaning both vacuum tight and pressure tight are typically based on Mil-DTL-26482, 38999, 5015 contact arrangements plus most other commercial connectors. Voltage rating varies, typically 600-1000V and higher.

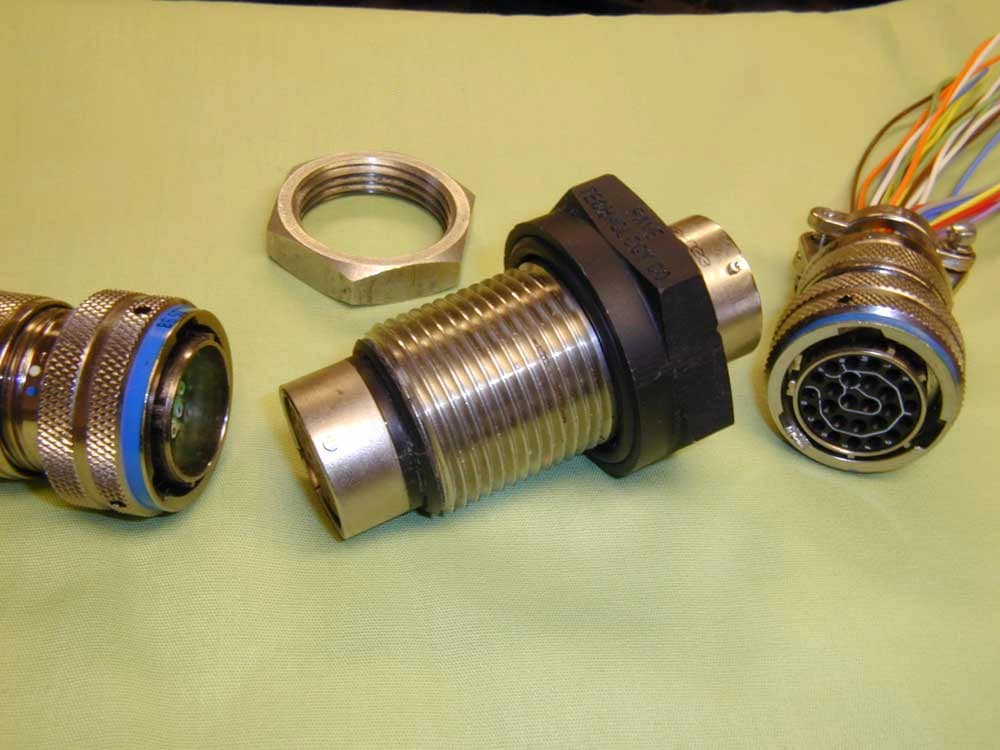

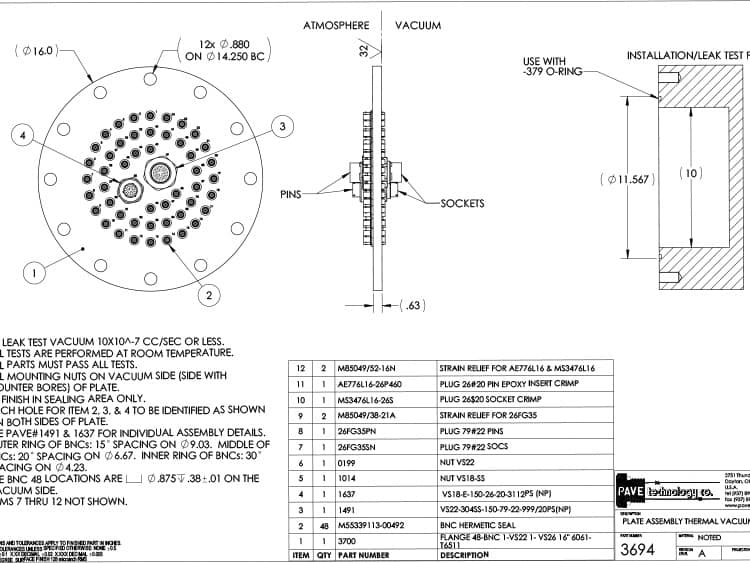

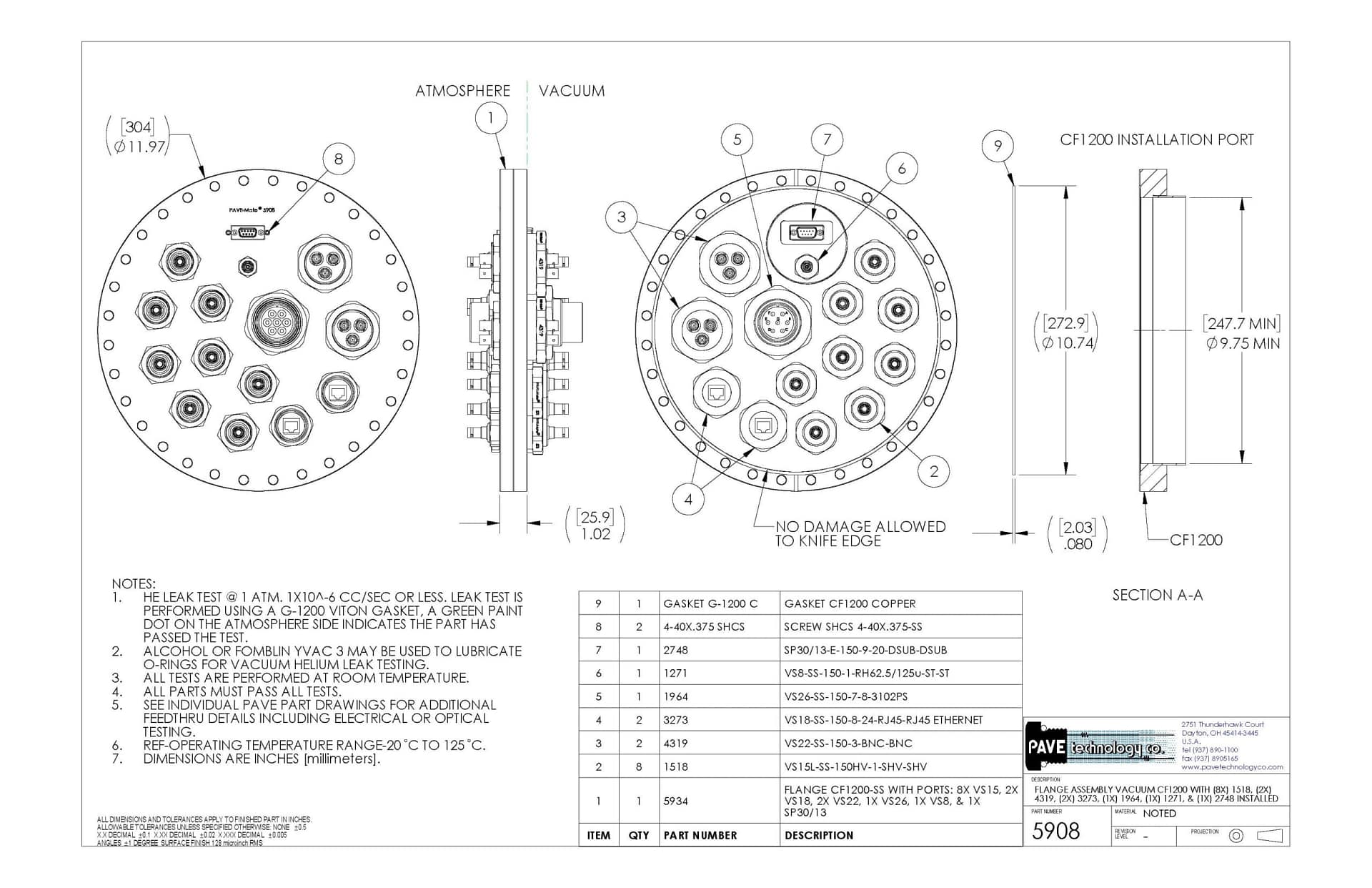

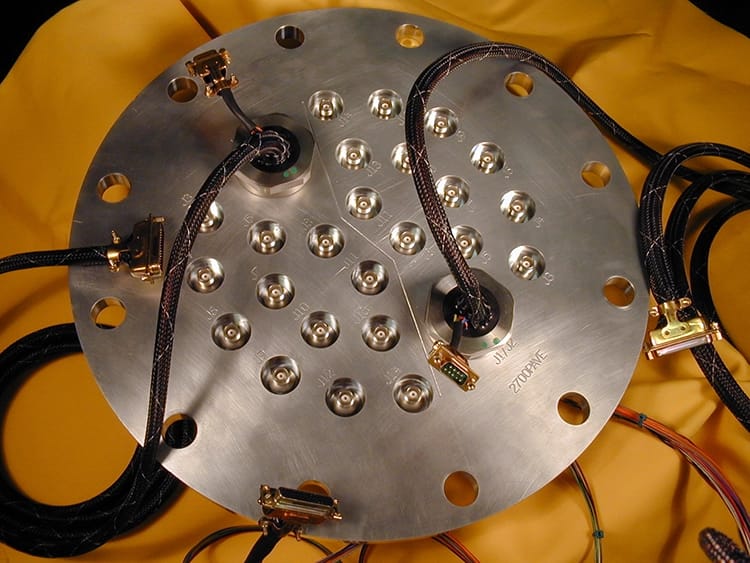

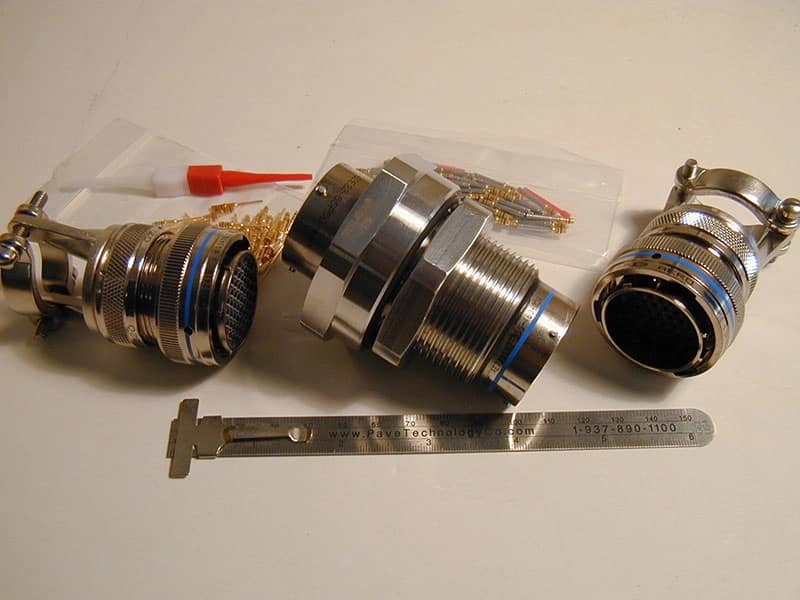

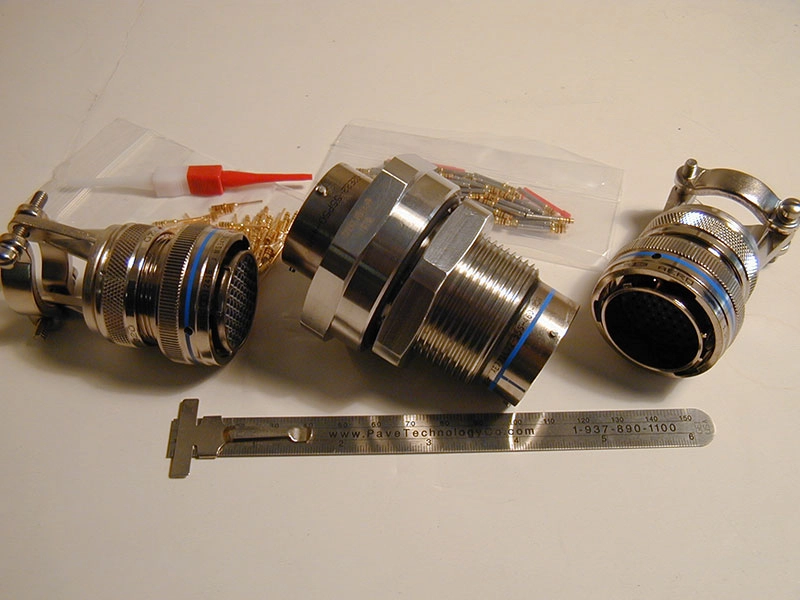

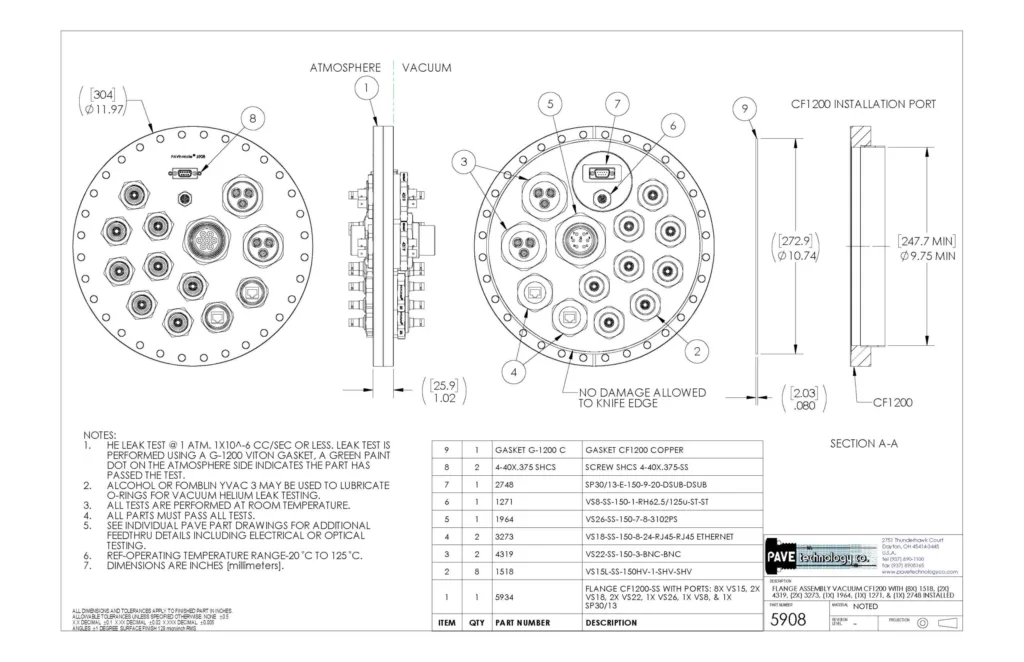

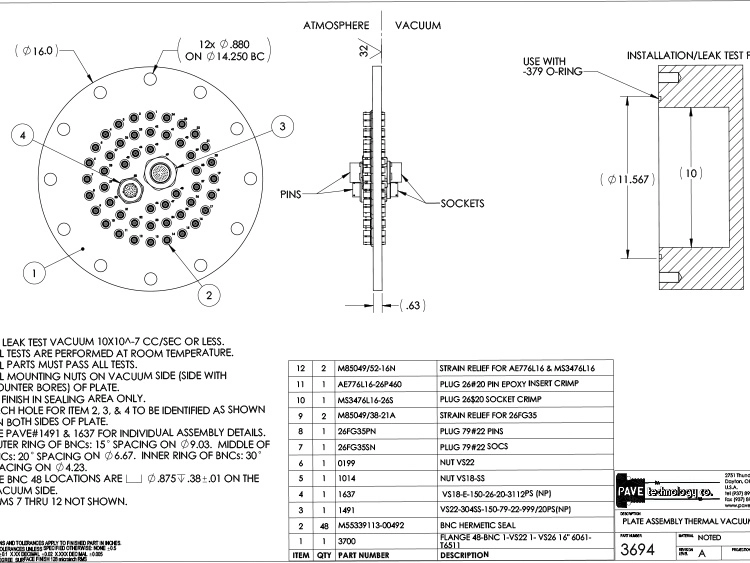

Bulkhead mounting styles include jam nut o-ring, NPT or custom flange type, o-ring or laser, and electron beam weld. All our hermetic connectors can be supplied and mounted on a vacuum or pressure flange of your choice. Connector plug coupling or mating styles are bayonet, threaded or push-pull coupling depending on the connector series. Special order mating connector plugs for 26482 connectors also rated for either IP67 or IP68 in mated condition are also available.
Since copper alloy contacts are used instead of the much higher resistance Kovar pins found in other hermetic connectors, PAVE dual-sided hermetic connectors offer much better electrical conductivity and amperage capability also with high dielectric or voltage ratings. The PAVE dual-sided hermetic electrical connectors are available in all contact arrangements for military specification electric connectors plus commercial version electrical connectors. Leak testing can be either a vacuum helium test or high-pressure N2 leak testing as required. The mating connector plugs, crimp, or solder contacts, are normally supplied.
PAVE-Mate® hermetic connectors are very robust and can be tested to pressures ranging from 80 psi to +3000 psi and vacuum up to 10^-8 Torr and temperatures from -100C to 200C depending upon the hermetic connector design, the o-ring compound used and matching the customer’s requirements. The dual-sided hermetic connector feedthroughs are also pressure or vacuum bi-directional either in the mated or unmated condition, though very high pressures may be rated higher in one direction. Hermetic leak rates are as low as 10^-9cc/sec. PAVE hermetically sealed connectors are NASA-approved low vacuum outgassing rates and are resistant to all types of fuels, gasses, and most chemicals and radiation. Standard dual-sided hermetic connector designs are listed below and custom hermetic connector designs are also available.
In a hurry? See our quick-ship hermetic connectors. Let us know about the equipment your business currently relies on or requires. If you’re interested in equipment similar to subsea SubConn connectors, we have products just as reliable and high-quality.
Use your keyboard’s shortcut ctrl+ F buttons to bring up your browser’s find dialog box to then enter and go directly to a particular part-drawing #.
| Installation Port | Mil-C-Series # Ref | Total Contacts | PAVE Description Codes, Housing & Wires | Contacts | AWG # | Contacts | AWG # | PART-DRAWING # |
|---|---|---|---|---|---|---|---|---|
| 1⅞” o-ring face seal | 5015 in stock | 7 | VS26-SS-150-7-8-3102PS See Quick Ship List | 7 | 8 | 1964 | ||
| 1¼” o-ring face seal | 26482 in stock | 8 | VS18-E-150-8-16-3112PS See Quick Ship List | 8 | 16 | 1837 | ||
| 1″ o-ring face seal | 26482 in stock | 10 | VS15L-E-150-10-20-3112PS See Quick Ship List | 10 | 20 | 1656 | ||
| 1⅝” o-ring face seal | 26482 in stock | 21 | VS22-E-150-21-16-3112PS See Quick Ship List | 21 | 16 | 1667 | ||
| 1¼” o-ring face seal | 38999 Series 3 in stock | 37 | VS18-SS-200-37-22-99920PS(V) See Quick Ship List | 37 | 22 | 1525 | ||
| 1⅝” o-ring face seal | 26482 in stock | 55 | VS22-E-150-55-20-3112PS See Quick Ship List | 55 | 20 | 1670 | ||
| 1⅞” o-ring face seal | 26482 in stock | 61 | VS26-E-150-61-20-3112PSSee Quick Ship List | 61 | 20 | 1671 | ||
| 1⅝” o-ring face seal | 38999 Series 3 in stock | 79 | VS22-SS-150-79-22-99920PSSee Quick Ship List | 79 | 22 | 1491 | ||
| 1″ o-ring face seal | 38999 series III inline | 2 | VS15L-SS-150-2-16-99920SP | 2 | 16 | 4682 | ||
| ¾” NPT | 26482 | 3 | PT12-B-150-3-20-3112 | 3 | 20 | 1331 | ||

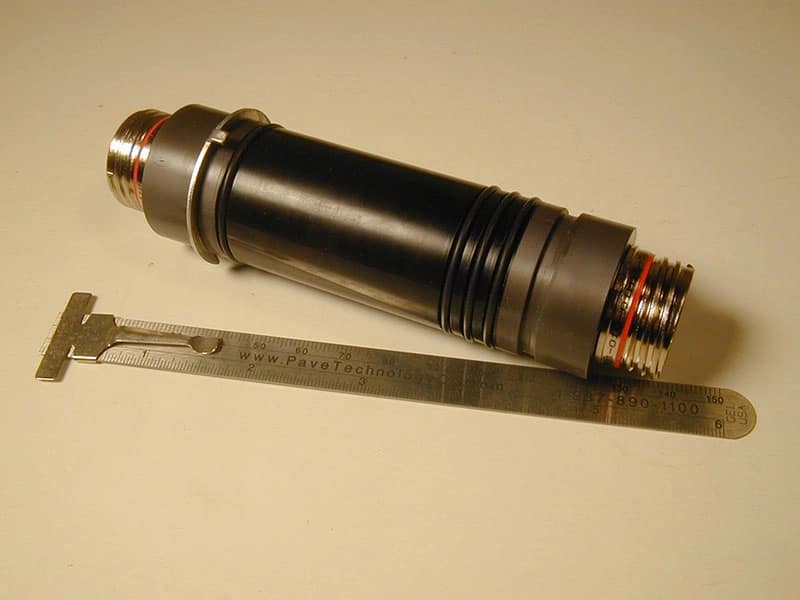

| 1¼” o-ring face seal | 5015 pushthru | 3 | PUSHTHRU ASSY 5015 3#12 | 3 | 12 | PT-1061 | ||
| ¾” o-ring face seal | 26482 | 3 | VS12L-SS-150-3-20-3112PS | 3 | 20 | 1772 | ||
| 1″ o-ring face seal | 26482 | 3 | VS15L-E-150-3-16-3112PS | 3 | 16 | 2167 | ||
| 1″ o-ring face seal | 26482 | 3 | VS15L-SS-150-3-20-3112PS | 3 | 20 | 1956 | ||
| 1¼” o-ring face seal | 5015 | 3 | VS18-SS-150-3-12-3102PS | 3 | 12 | 1780 | ||
| 1 7/8″ o-ring face seal | NEMA 5-20R | 3 | VS26-E-150-3-20A | 3 | 12 | 5071 | ||
| 1/16″ NPT | custom | 4 | PT1-SS-200-4-.028Cu-QD | 4 | 28 | 1125 | ||
| 1/16″ NPT | custom | 4 | PT1-C276-200-4-.028Cu-QD | 4 | 26 | 2581L | ||
| 1/16″ NPT | custom | 4 | PT1-C276-200-4-.028Cu-QD | 4 | 26 | 2581 | ||
| 1-1/16″ SAE | custom tabs | 4 | SO16-SS-200-4-14-T-T | 4 | 14 | 2091 | ||
| USB 2.0 Teflon PTFE shielded jumper cable, A plug micro B plug, 0.5m | 5404 | |||||||
| 15.9mm piston o-ring | USB C | 4 | SP10M-E-150-1-USB C female | 16 | 26 | 5781 | ||
| CABLE ASSEMBLY USB 3.0 PVC TYPE MICRO-B UP ANGLE MALE TO TYPE C MALE 6″ OAL | 5783 | |||||||
| 1″ mNPT | USB 3.0 | 9 | PT16-SS-150-1-USBAfemale CROSSOVER USB 3.0 | 9 | 26 | 5767 | ||
| CABLE ASSEMBLY SHIELDED USB 3.0 PTFE TYPE A MALE TO TYPE C MALE 78″ OAL | 5782 | |||||||
| 1″ NPT | USB type A 2.0 | 4 | PT16-SS-150-1-USB A female-USB A male | 4 | 26 | 4371 | ||
| 1″ o-ring face seal | USB 2.0 | 4 | VS15L-SS-150-1-USB A female-USB A female See Quick Ship List | 4884 | ||||
| 1″ o-ring face seal | USB 2.0 | 4 | VS15L-SS-150-1-USB Amale-US BAfemale | 4 | 20 | 3529 | ||
| 1″ o-ring face seal | USB 2.0 Type | 4 | VS15L-SS-150-1-USBAfemale-USBAfemale USB | 4 | 22 | 4435 | ||
| 1″ o-ring face seal | 26482 | 4 | VS15L-SS-150-4-20-3112PS | 4 | 20 | 2681 | ||
| 30mm o-ring face seal | proprietary | 4 | PT-VSM30-SS-150-4-16 Pushthru PAVE-Mate | 4 | 16 | PT-4114 | ||
| 1⅝” o-ring face seal | 5015 | 4 | VS22-E-150-4-12-3102PS | 4 | 12 | 1855 | ||
| 42mm o-ring face seal | proprietary | 4 | PT-VSM42-SS-150-4-12 Pushthru PAVE-Mate | 4 | 12 | PT-4109 | ||
| 1⅝” o-ring face seal | 5015 | 4 | VS22-E-150-4-8-3112PS | 4 | 8 | 1863 | ||
| 1⅞” o-ring face seal | 5015 | 4 | VS26-SS-150-4-8-3102PS | 4 | 8 | 2403 | ||
| 1½” o-ring face seal | 5015 | 4 | VS32-SS-150-4-4-3102PS | 4 | 4 | 2401 | ||
| 2 1/2″ o-ring face seal | 5015 | 4 | VS32-SS-150-4-0-3102PS | 4 | 0 | 5724 | ||
| 1″ NPT | M12 | 5 | PT16-SS-150-5-22-M12M-M12M | 5 | 16 | 5822 | ||
| 1″ NPT | 26842 | 5 | PT16-SS-150-5-16-3102PS | 5 | 24 | 1395 | ||
| 1″ o-ring face seal | 38999 Series 3 | 5 | VS15L-SS-150-5-20-20FB5PSN | 5 | 20 | 4200 | ||
| 1¼” o-ring face seal | 26482 | 5 | VS18-SS-150-5-16-3102PS | 5 | 16 | 2418 | ||
| 1⅞” o-ring face seal | 38999 Series 3 inline | 5 | VS26-SS-150-5-16-999PS | 5 | 16 | 2743 | ||
| ¾” NPT | 26482 | 6 | PT12-B-150-6-20-3112 PMI | 6 | 20 | 1332 | ||
| ½” NPT | 26482 | 6 | PT8-SS-150-6-22-38999/20PS | 6 | 22 | 1297 | ||
| 1″ NPT | 26482 | 6 | PTN16-SS-150-6-20-3112SS | 6 | 20 | 5655 | ||
| 7/8″ o-ring face seal | 5015 | 6 | VS14-SS-150-6-16-3102PS TBFH Cannon | 6 | 16 | 292 | ||
| 1″ o-ring face seal | 26482 | 6 | VS15L-E-150-6-20-3112PSVNP | 6 | 20 | 1897 | ||
| 1″ o-ring face seal | 26482 | 6 | VS15L-SS-150-6-20-3112PS | 6 | 20 | 1722 | ||
| 1″ o-ring face seal | firewire usb | 6 | VS15L-SS-150-6-28-IEEE1394 FIREWIRE | 6 | 28 | 3321 | ||

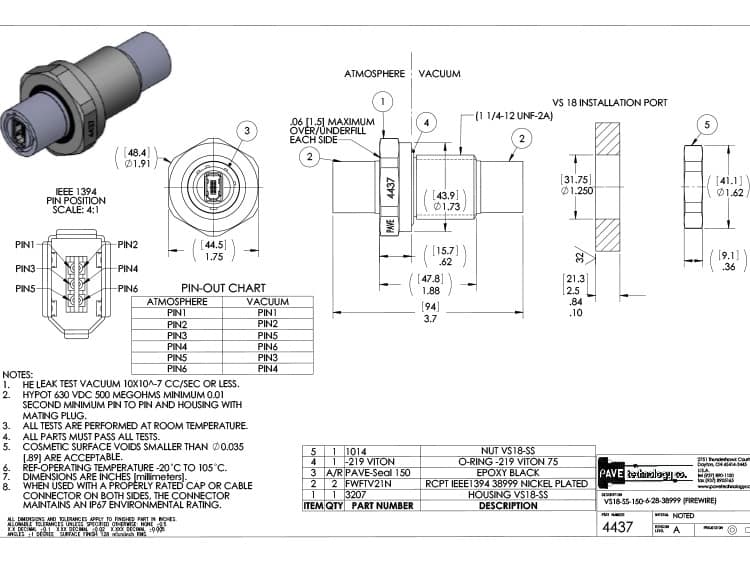

| 11/4″ o-ring face seal | IEEE-1394 | 6 | VS18-ss-150-6-28-38999 FIREWIRE IEEE-1394 | 6 | 28 | 4437 | ||
| 1″ o-ring face seal | 26482 | 6 | VS15L-SS-150-6-20-3112SP | 6 | 20 | 1564 | ||
| 1 1/4″ o-ring face seal | 38999 Series III | 6 | VS18-SS-150-6-22-99920PSA (NP) | 6 | 22 | 5716 | ||
| 1⅝” o-ring face seal | 5015 | 6 | VS22-SS-150-6-16-3102PS(NP) | 6 | 16 | 2059 | ||
| 2 ⅝” o-ring face seal | 38999 Series 3 | 6 | VS22-SS-150-6-12-99920PS | 6 | 12 | 2 | 0 | 5313 |
| 2 ½” o-ring face seal | 5015 | 6 | VS32-SS-150-4/2-4/0-3102SP | 4 | 4 | 2 | 0 | 5136 |

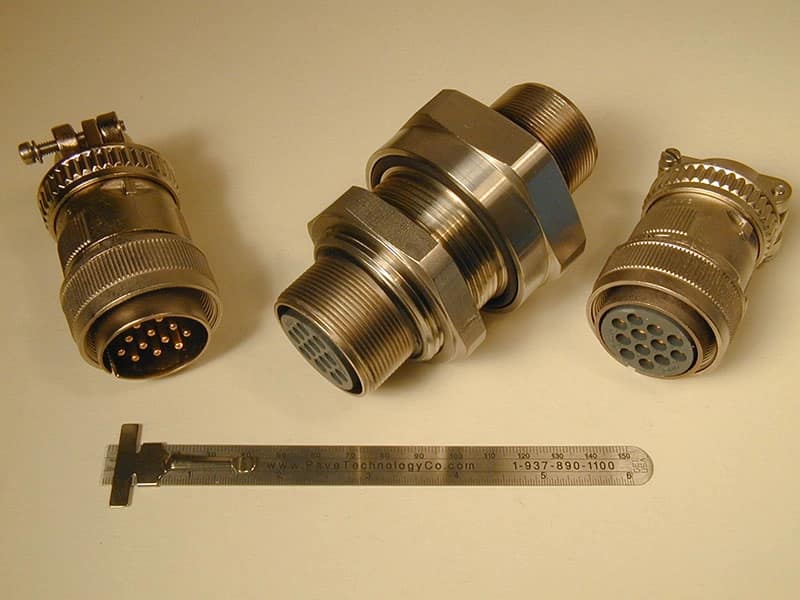

| 1¼” o-ring face seal | threaded coupling | 7 | VS18-SS-150-7-12-MM801PS | 7 | 12 | 4694 | ||
| 30,1 mm o-ring face seal | 38999 Series 3 | 7 | VSM30-SS-150-7-20-38999PS | 7 | 20 | PT-4123 | ||
| 1¼” o-ring face seal | 5015 pushthru | 7 | VS18P-SS-150-7-16-QDC | 7 | 16 | PT-1000 | ||
| 1¼” o-ring face seal | 5015 pushthru | 7 | VS18P-SS-150-7-16-QDC | 7 | 16 | PT-1009 | ||
| 1⅞” o-ring face seal | 5015 | 7 | VS26-SS-150-7-8-3102PS(AU) | 7 | 8 | 2029 | ||
| 9/16″ o-ring face seal | M8 | 6 | VS9-SS-150-6-24-M8M-M8M | 5855 | ||||
| 9/16″ o-ring face seal | M8 | 6 | VS9-SS-150-6-24-M8M-M8M | 6 | 24 | 5833 | ||
| 1″ o-ring face seal | 26482 | 8 | VS15L-E-150-8-20-3112PS | 8 | 20 | 1797 | ||
| 1¼” o-ring face seal | 38999 Series 3 | 8 | VS18-SS-150-8-20-20FC8PSN | 8 | 20 | 4949 | ||
| 1″ NPT | RJ45 Cat5 | 8 | PT16-B-150-8-24 RJ45 RJ45 Cat5 Cat6 ethernet LAN | 8 | 24 | 4777 | ||
| CAT6 FEP insulated RJ45 jumper cable | 5546 | |||||||

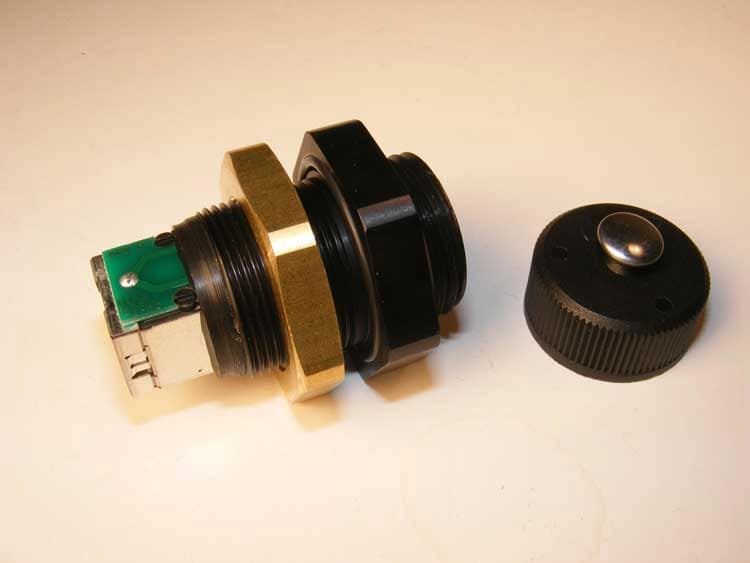

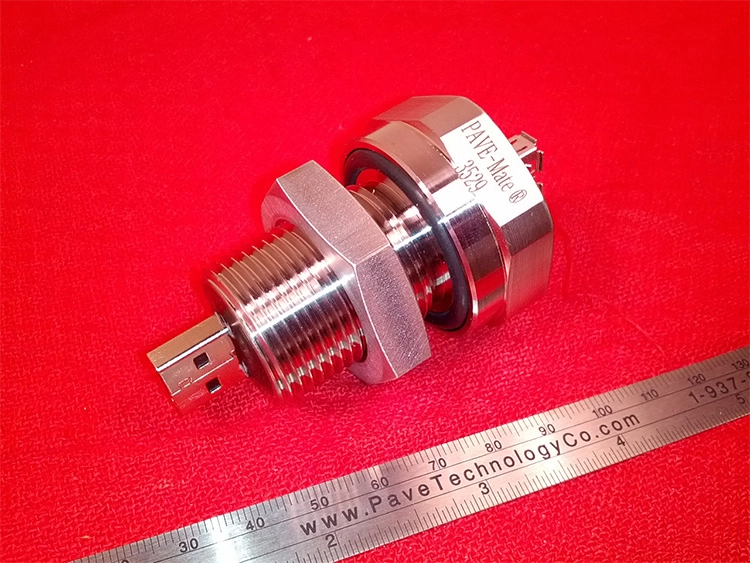

| 1¼” o-ring face seal | RJ45 8P8C Ethernet | 8 | VS18-SS-150-8-24-RJ45-RJ45 (ETHERNET) LAN See Quick Ship List | 8 | 24 | 3273 | ||
| USB 3.1 Teflon PTFE shielded jumper cable, A plug micro B plug, 0.5m | 5330 | |||||||
| 1″ o-ring face seal | USB 3.0 female | 8 | VS15-SS-150-1-USB-A female CROSSOVER USB3.0 | 25 | 8 | 5607 | ||
| 3/4″ o-ring face seal | USB C female | 16 | VS12-SS-150-1- USB-C female | 28 | 16 | 5612 | ||
| 1″ o-ring face seal | USB 3.0 | 8 | VS15L-SS-150-1- USB-A female USB 3.0 crossover | 8 | 24 | 5114 | ||
| 1 5/8″ o-ring face seal | USB 3.0 | 16 | VS22S-SS-150-2-USB-A female CROSSOVER USB3.0 | 16 | 25 | 5591 | ||
| 1″ o-ring face seal | RJ45 Cat5-7 | 8 | VS15FP-AL-150-8-24 RJ45 RJ45-CAT6 Ethernet LAN Hermetic & IP67 Rated with Threaded Mating Plug | 8 | 24 | 3653 | ||
| 1″ o-ring face seal | USB 3.0 | 8 | VS15-SS-150-1-USBAfemale CROSSOVER USB3.0 IP67 | 8 | 25 | 5758 | ||
| 1⅝” o-ring face seal | RJ45 CAT 5 | 8 | VS22W-SS-150-8-24-RJ45-RJ45 CAT 5 LAN | 8 | 24 | 3933 | ||
| 42mm o-ring face seal | proprietary | 8 | PT-VSM42-SS-150-8-16 Pushthru PAVE-Mate | 8 | 16 | PT-4116 | ||
| 1¼” o-ring face seal | 26482 | 8 | VS18-SS-150-8-16-3112PS | 8 | 16 | 4840 | ||
| 1 NPT | mini-DIN | 8 | PT16-SS-150-8-26-MINI DIN SS | 8 | 26 | 5246 | ||
| 1 NPT | Trident IPT67 | 8 | PT16-SS-150-8-16-TRIDENT SS IP67 | 8 | 16 | 5245 | ||
| 1¼” o-ring face seal | 26482 | 8 | VS18-SS-150-8-16-3112PS | 8 | 16 | 1715 | ||
| 1 5/8″ o-ring face seal | 38999 Series III | 8 | VS22-SS-150-8-16-99920PS (NP) | 8 | 16 | 5714 | ||
| 1 5/8″ o-ring face seal | 5015 | 8 | VS22-SS-150-8-12-3102PS | 8 | 12 | 5124 | ||
| 1⅞” o-ring face seal | 5015 | 8 | VS26-E-150-8-12-3102PS | 8 | 12 | 2573 | ||
| 1⅞” o-ring face seal | 38999 series 3 | 8 | VS26-SS-150-8-8-99926S/20P | 8 | 8 | 4455 | ||
| Flange 4.33″ face seal | 5015 | 9 | FL69-SS-150-9-8-3102PS | 9 | 8 | 3757 | ||
| KF NW 50 flange | 38999 series 3 | 11 | NW50-SS-150-11-12-99920/26PS inline | 11 | 12 | 5522 | ||
| KF NW 50 flange | 38999 series 3 | 11 | NW50-SS-150-11-12-99920/26SP inline gender reverse | 11 | 12 | 5523 | ||
| KF NW 50 flange | 38999 series 3 | 11 | NW50-SS-150-11-12-99926/20PS inline | 11 | 12 | 5525 | ||
| 1⅞” o-ring face seal | 38999 Series 4 rev | 11 | VS26-SS-150-11-12-40FG11PSN(NP) | 11 | 12 | 3247 | ||
| 1″ o-ring face seal | PTFE | 10 | VS15L-E-150-10-20-3112SP | 10 | 20 | 2415 | ||
| 1¼” o-ring ace seal jam nut | 38999 series 3 | 10 | VS18-SS-150-10-20-99920PS | 10 | 20 | 5325 | ||
| 1¼” o-ring face seal | 26482 | 10 | VS18-SS-150-10-20-3112PS | 10 | 20 | 1864 | ||
| 1⅝” o-ring face seal | 5015 | 10 | VS22-SS-150-10-16-3102PS | 10 | 16 | 1481 | ||
| 1⅞” o-ring face seal | 38999 Series 3 | 11 | VS26-SS-150-11-12-99920PS | 11 | 12 | 4427 | ||
| 1″ NPT | 26482 | 12 | PTN16-SS-150-4/8-16/20-3112SS | 4 | 16 | 8 | 20 | 5654 |
| 1⅞” o-ring face seal | 5015 | 12 | VS26-SS-150-12-12-3102PS | 12 | 12 | 1530 | ||
| 1″ o-ring face seal | 38999 Series 3 | 13 | VS15L-SS-150-13-22-20FB35PSN | 13 | 22 | 4947 | ||
| 1″ o-ring face seal | 38999 Series 2 | 13 | VS15L-SS-150-13-22-27472PS | 13 | 22 | 4503 | ||
| 1″ o-ring face seal | 26482 | 14 | VS15L-E-150-14-20-3112PS | 14 | 20 | 1684 | ||
| 2½” o-ring face seal | 5015 | 14 | VS32-SS-150-12/2-8/16-3102SP(NP) | 12 | 8 | 2 | 16 | 1758 |
| 1¼” o-ring face seal | 26482 | 15 | VS18-E-150-14/1-20/16-3112PS | 14 | 20 | 1 | 16 | 1713 |
| 1″ NPT | 26482 | 18 | PT16-B-80-18-20-3112PS(NP) | 18 | 20 | 2398 | ||
| 1¼” o-ring face seal | 26482 | 19 | VS18-E-150-19-20-3112PS | 19 | 20 | 1651 | ||
| 1¼” o-ring face seal | 38999 Series 3 SS | 19 | VS18P-SS-150-19-20PS PUSHTHRU | 19 | 20 | 1046 | ||

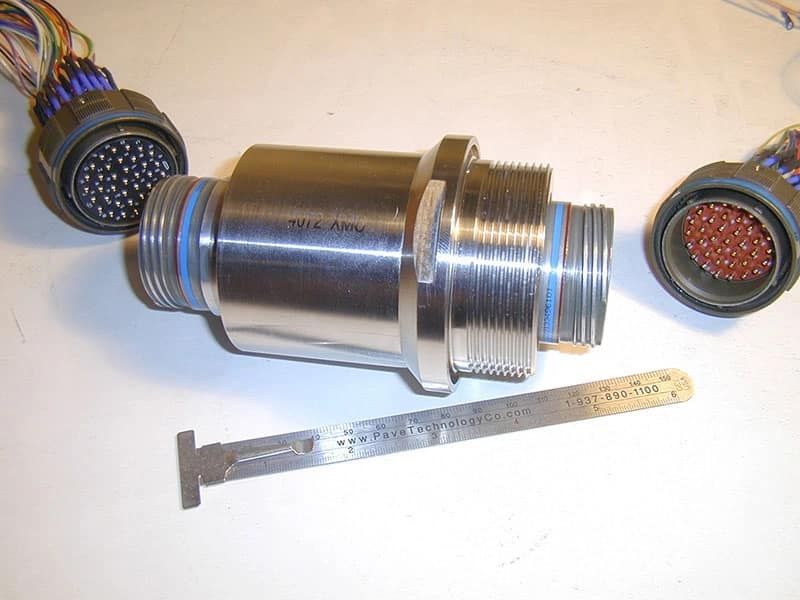

| 1¼” o-ring face seal | 38999 Series | 19 | PUSH THRU MOLDED REPLACEABLE CORE | 19 | 20 | PT-1048 | ||
| 1¼” o-ring face seal | 26482 | 19 | VS18-SS-150-19-20-3112PS | 19 | 20 | 1721 | ||
| 1¼” o-ring face seal | 26482 | 19 | VS18-SS-80-19-20-3112P-SC | 19 | 20 | 1547 | ||
| 1⅝” o-ring face seal | HDMI A | 19 | VS22-SS-150-1 HDMI A female HDMI Type A | 19 | 26 | 19 | 5157 | |
| 1⅝” o-ring face seal | 5015 | 19 | VS22-E-150-19-16-3102PS | 19 | 16 | 2173 | ||
| 1⅞” o-ring face seal | 5015 | 19 | VS26-SS-150-19-12-99920PS See Quick Ship List | 19 | 12 | 3938 | ||
| 1⅞” o-ring face seal | 38999 Series III inline | 19 | VS26-SS-150-19-12-99920PS | 19 | 12 | 4681 | ||
| 2½” o-ring face seal | 38999 Series 1 inline | 19 | VS32-SS-150-19-12-27466PS | 19 | 12 | 2738 | ||
| 2½” o-ring face seal | 38999 Series 3 | 19 | VS32-SS-150-19-12-99920PSN | 19 | 12 | 1662-N | ||
| 2¾” Conflat flange | 26482 | 21 | CF275-SS-80-21-16-3112PS | 21 | 16 | |||
| 1⅞” o-ring face seal | Lemo | 20 | VS26-SS-150-4-FG1B305-EG1B305 four Lemo pharmaceutical | 20 | 20 | 5505 | ||
| CLF3 sanitary fitting | Lemo | 20 | CLF3(2.0)-316LSS-150-4-FG1B305 Lemo pharmaceutical | 20 | 20 | 5503 | ||
| 1⅞” o-ring face seal | 26482 | 21 | V626-SS-150-21-16-3112PS | 21 | 16 | 2402 | ||
| 1⅞” o-ring face seal | 38999 Series 3 | 21 | VS26FLT-SS-200FR-21-16-99920SPB | 21 | 16 | 2232 | ||
| 1¼” o-ring face seal | 38999 Series 3 | 22 | VS18-SS-150-22-22-99920SPN | 22 | 22 | 1661 | ||
| 1⅞” o-ring face seal | 5015 | 22 | VS26-E-150-18/4-16/12-3102PS (NP) | 18 | 16 | 4 | 12 | 2329 |
| 1¼” o-ring face seal | 26482 | 23 | VS18-E-150-1/22-16/20-3112NP | 1 | 16 | 22 | 20 | 2671 |
| Flange 4.33″ face seal | 5015 | 24 | FL69-SS-150-24-16-3102PS | 16 | 24 | 3756 | ||
| 1⅞” o-ring face seal | 5015 | 24 | VS26-SS-150-24-16-3102PS | 24 | 16 | 1482 | ||
| 2¼” conflat flange | 26482 | 26 | CF275-SS-80-26-20-3112PS | 26 | 20 | |||
| 1¼” o-ring face seal | 26482 | 26 | VS18-SS-150-26-20-3112PSV VITON | 26 | 20 | 1637 | ||
| 1 5/8″ o-ring face seal | 38999 Series III | 26 | VS22-SS-150-26-20-99920PS (NP) | 26 | 20 | 5715 | ||
| 1⅞” o-ring face seal | 5015 | 26 | VS26-E-150-26-16-3102PS | 26 | 16 | 2572 | ||
| 1⅞” o-ring face seal | 38999 Series 1 inline | 26 | VS26-SS-150-26-20-27466PS | 26 | 20 | 2739 | ||
| 1.75″ o-ring face sea | 38999 Series 3 | 28 | D38999/24-AL-150-8/16/4-TPE17/22/16-96 | 8 & 4 | 17 & 16 | 16 | 22 | 4992 |
| 1⅞” o-ring face seal | 26482 | 31 | VS26-E-150-31-16-3112PS | 31 | 16 | 1957 | ||
| 1 5/8″ o-ring face seal | Mini-SAS | 32 | VS22-SS-150-1-miniSAS-miniSAS | 32 | 30 | 5639 | ||
| 1.5″ o-ring face seal | 38999 Series 3 | 32 | D38999/24-AL-150-32-TPE24-96 | 32 | 24 | 4991 | ||
| 1⅝” o-ring face seal | 26482 | 32 | VS22-SS-150-32-20-3112PS | 32 | 20 | 1848 | ||
| 1⅝” o-ring face seal | 38999 Series 3 | 32 | VS22-SS-150-32-20-3899920PS(NP) | 32 | 20 | 3332 | ||
| 2½” o-ring face seal | 5015 | 35 | VS32-SS-150-35-16-3102SP | 35 | 16 | 5137 | ||
| 2½” o-ring face seal | 5015 | 35 | VS32-E-150-28/7-16/12-3102PS(NP) | 28 | 16 | 7 | 12 | 1958 |
| 1 1/4″ o-ring face seal | 38999 Series III | 37 | VS18-SS-150-37-22-99920PS (NP) | 37 | 22 | 5717 | ||
| KF NW 50 flange | 38999 series 3 | 37 | NW50-SS-150-37-22-99920/26PS inline | 37 | 22 | 5521 | ||
| KF NW 50 flange | 38999 series 3 | 37 | NW40-SS-150-37-22-99920/26PS inline | 37 | 22 | 5528 | ||
| 1¼” o-ring face seal | 5015 pushthru | 37 | VS18P-SS-150-37-22-QDC | 37 | 7 | PT3178 | ||
| 1⅞” o-ring face seal | 38999 Series 2 | 37 | VS26-SS-150-37-22-27472PS | 37 | 22 | 4464 | ||
| 1⅞” o-ring face seal | 38999 Series 3 inline | 37 | VS26-SS-150-37-22-999PS | 37 | 22 | 2744 | ||
| 1⅞” o-ring face seal | 5015 | 37 | VS26-E-150-37-16-3102PS | 37 | 16 | 1583 | ||
| 2½” o-ring face seal | 5015 | 37 | VS32-SS-150-37-16-3102SP(NP) | 37 | 16 | 1759 | ||
| 1⅞” o-ring face seal | 38999 Series 3 | 37 | VS26-SS-150-37-16-99926/20 | 37 | 16 | 4457 | ||
| 1⅞” o-ring face seal | 38999 Series 3 inline | 39 | VS26-SS-150-37/2-20/16-999PS | 37 | 20 | 2 | 16 | 2742 |
| 1⅝” o-ring face seal | 26482 | 41 | VS22-E-150-27/14-20/16-3112PS | 27 | 20 | 14 | 16 | 1490 |
| 1⅝” o-ring face seal | 26482 | 41 | VS22-SS-150-41-20-3112PS | 41 | 20 | 1691 | ||
| 1⅞” o-ring face seal | 38999 Series 4 | 41 | VS26-SS-150-41-20-40FG41PSN(NP) | 41 | 20 | 3251 | ||
| 1⅞” o-ring face seal | 38999 Series 1 inline | 41 | VS26-SS-150-41-20-27466PS | 41 | 20 | 2735 | ||
| 2½” o-ring face seal | 5015 | 48 | VS32-E-150-48-16-3102PS | 48 | 16 | 1669 | ||
| 2½” o-ring face seal | 5015 | 48 | VS32-SS-150-48-16-3102PS(A95) goldplated | 48 | 16 | 2397 | ||
| 2¼” o-ring face seal | 5015 | 48 | VS36UN-SS-150-48-16-3102SP | 48 | 16 | 4512 | ||
| NW KF Flange | 5015 | 48 | NW63-SS-150-48-16-3102PS | 48 | 16 | 3856 | ||
| 1⅞” o-ring face seal | MDR | 52 | VS26-SS-150-52-26-MDR-MDR | 52 | 26 | 4754 | ||
| 2½” o-ring face seal | 5015 | 52 | VS32-E-150-52-16-3102PS | 52 | 16 | 3584 | ||
| 1⅞” o-ring face seal | 38999 series 3 inline | 53 | VS26-SS-150-53-20-99926/20 | 53 | 20 | 4456 | ||
| Flange 3″ diameter | 26482 | 55 | Flange mount 3″ OD double seal with test ports | 55 | 20 | 0359 | ||
| KF NW 50 flange | 38999 series 3 | 55 | NW50-SS-150-55-22-99920/26PS inline | 55 | 20 | 5524 | ||
| 1½” o-ring face seal | 26482 | 55 | VS20UNEF-SS-150-55-20-3112PS | 55 | 20 | 4513 | ||
| 1⅝” o-ring face seal | 26482 | 55 | VS22-E-200-55-20-3112PS (NP) | 55 | 20 | 3613 | ||
| 1⅞” o-ring face seal | 38999 Series 3 | 55 | VS26-SS-150–55-22-99920PS | 55 | 22 | 3566 | ||
| 1⅞” o-ring face seal | 38999 Series 3 | 55 | VS26FLT-SS-200FR-55-22-99920SPA | 55 | 22 | 2231 | ||
| 1⅞” o-ring face seal | 38999 Series 4 reverse | 55 | VS26-SS-150-55-22-40FE35SP(NP) | 55 | >22 | 3244 | ||
| 1 5/8″ o-ring face seal | 38999 Series 1 | 55 | VS22-SS-150-55-22-27466PS (NP) | 55 | 22 | 55 | 5693 | |
| 1⅞” o-ring face seal | 38999 Series 1 inline | 55 | VS26-SS-150-55-20-27466PS | 55 | 20 | 2732 | ||
| 1⅞” o-ring face seal | 26482 inline | 55 | VS26-SS-150-55-20-3470PS | 55 | 20 | 2733 | ||
| >1⅞” o-ring face seal | 38999 Series 4 | 55 | VS26-SS-150-55-20-40FH55SPN | 55 | 20 | 1781 | ||
| 1⅞” o-ring face seal | 38999 series 2 | 55 | VS26-SS-150-55-22-27472PS | 55 | 22 | 4463 | ||

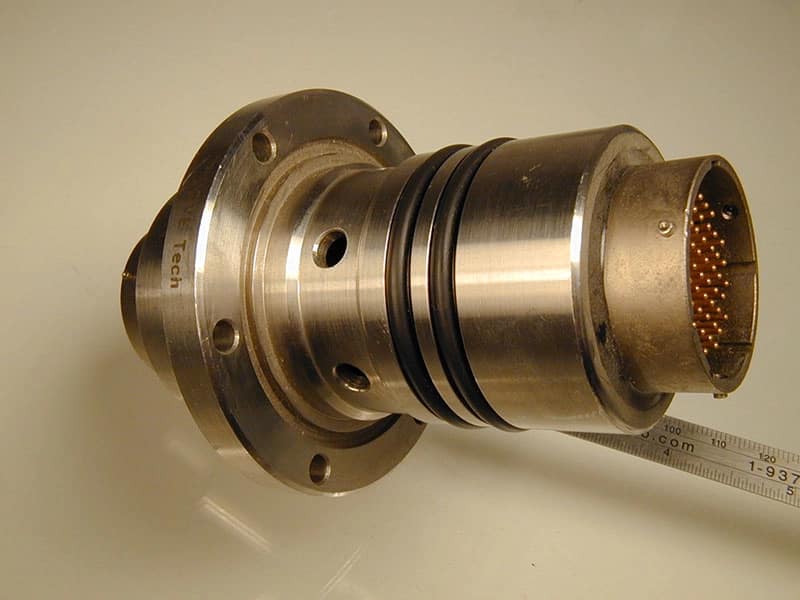

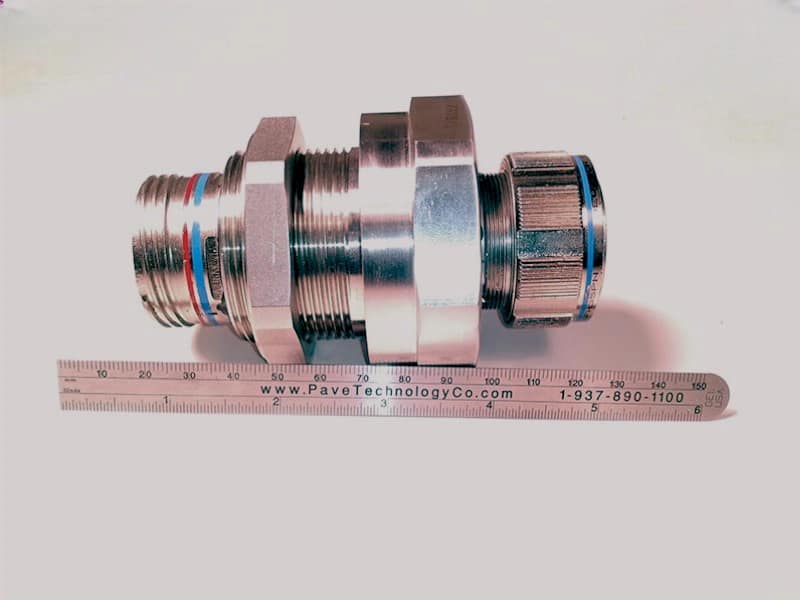

| pm1 | inline | 55 | VS26-SS-150-55-22-2746PS | 55 | 22 | 2745 | ||
| 1 7/8″ o-ring face seal | 38999 Series III | 56 | VS26-SS-150-8/48-16/20-99920PS | 8 | 16 | 48 | 20 | 5271 |
| 1 7/8″ o-ring face seal | 38999 series I inline | 61 | VS32-SS-150-61-20-27466PS | 61 | 20 | 2730 | ||
| 1⅞” o-ring face seal | 26482 inline | 61 | VS26-SS-150-61-20-3470PS Type T thermocouple contacts | 20 | 2734 | |||
| 1⅞” o-ring face seal | 38999 Series 2 inline | 61 | VS26-SS-150-61-20-27472PS | 61 | 20 | 2731 | ||
| 1⅝” o-ring face seal | 38999 Series 3 | 66 | VS26-SS-150-66-22-20FF35SP | 66 | 22 | 4199 | ||
| 1⅞” o-ring face seal | 26482 | 61 | VS22UNEF-SS-150-61-20-3112PS | 61 | 20 | 4514 | ||
| 2.75″ o-ring face seal | 26482 | 61 | VS25-SS-150-61-20-3112PS | 61 | 20 | 415 | ||
| 1⅞” o-ring face seal | 38999 Series 1 inline | 66 | VS26-SS-150-66-22-27466PS | 66 | 22 | 2736 | ||
| 2½” o-ring face seal | MDR | 78 | VS32-SS-150-78-26-MDR-MDR | 4662 | ||||
| 1⅞” o-ring face seal | 38999 Series 4 reverse | 79 | VS26-SS-150-79-22-40FG35SPN(NP) | 79 | 22 | 3249 | ||
| 1⅝” o-ring face seal | 38999 Series 3 | 79 | VS22-SS-150-79-22-99920SP | 79 | 22 | 1492 | ||
| 1⅞” o-ring face seal | 38999 Series 1 inline | 79 | VS26-SS-150-79-22-27466PS | 79 | 22 | 2740 | ||
| 1⅞” o-ring face seal | 38999 Series 2 inline | 79 | VS26-SS-150-79-22-27472PS | 79 | 22 | 2737 | ||
| 1⅞” o-ring face seal | 38999 Series 3 inline | 79 | VS26-SS-150-79-22-999PS | 79 | 22 | 2727 | ||
| 2¾” o-ring face seal | 5015 | 85 | VS44-SS-150-85-16-3102PS | 85 | 16 | 4380 | ||
| 1⅞” o-ring face seal | 38999 Series 3 | 100 | VS26FLT-SS-200FR-100-22-99920SPC | 100 | 22 | 2233 | ||
| 1⅞” o-ring face seal | 38999 Series 1 inline | 100 | VS26-SS-150-100-22-27466PS | 100 | 22 | 2728 | ||
| 1⅞” o-ring face seal | 38999 Series 2 inline | 100 | VS26-SS-150-100-22-27472PS | 100 | 22 | 2741 | ||
| 1⅞” o-ring face seal | 38999 Series 2 inline | 100 | VS26-SS-150-100-22-27472PS | 100 | 22 | 2729 | ||
| 1⅞” o-ring face seal | 100 | VS26-SS-150-100-22-40fh35sp* | 100 | 22 | 2937 | |||
| 1⅞” o-ring face seal | 38999 Series 3 inline | 100 | VS26-SS-150-100-22-999PS | 100 | 22 | 2726 | ||
| 1 7/8″ o-ring face seal | 38999 Series 3 | 128 | VS26-SS-150-128-22-99920PS space grade! | 128 | 22 | 5738 | ||
| 1⅞” o-ring face seal | 38999 Series 3 | 128 | VS26-SS-150-128-22-99920PS | 128 | 22 | 3567 | ||
| 1⅞” o-ring face seal | 38999 Series 4 | 128 | VS26-SS-150-128-22-40FJ35SP | 128 | 22 | 2936 |
