PAVE hermetic seals and bi-directional and will seal both pressure and vacuum in either or both directions. For pressures above 300 psi (20 bar), please check with the sales engineer if changing the pressure direction shown on the drawing.

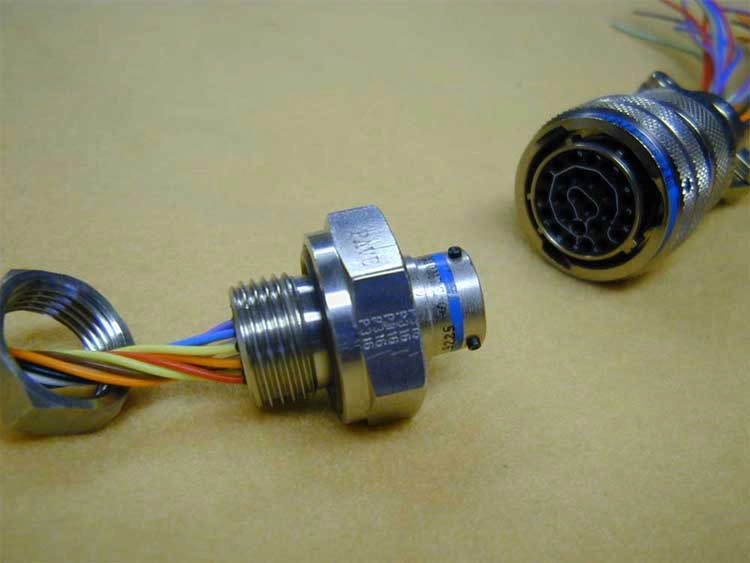

PAVE-Mate® II hermetic electrical connectors are pre-wired on one side as customer’s require with a mating connector plug supplied for the other side of the pressure or vacuum bulkhead. Either side can be configured as required by the customer in a variety of hermetic connector mounting styles including VS or mil-spec jam nut o-ring face seal, ISO QF KF NW DN CF ASA vacuum flanges, NPT, SO straight thread/o-ring, piston o-ring seal, laser weld or custom designed flanges for low pressures and high (+1k psi) pressures and vacuums (up to 10^-8 Torr), with use between -200C to 150C depending upon the o-ring compound selected. Helium leak rates are typically between 10^7cc/sec and 10^9cc/sec. Special order mating connector plugs for 26482 connectors also rated for either IP67 or IP68 in mated condition are also available.

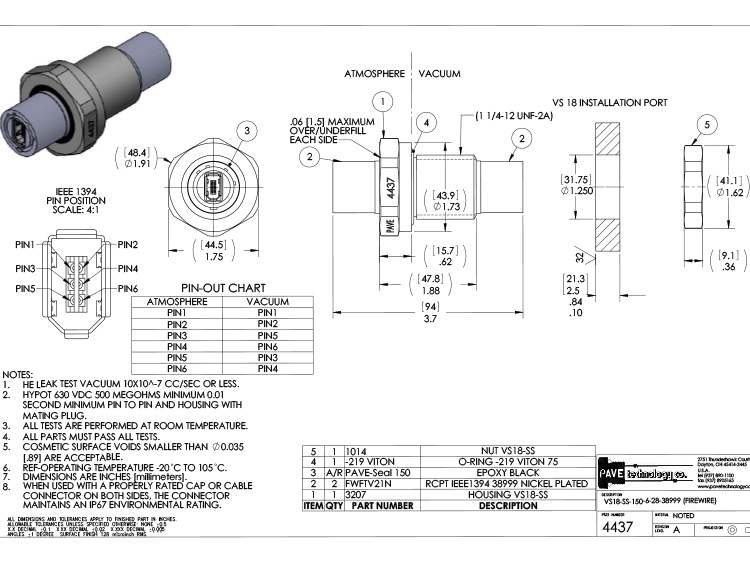

Any standard commercial or mil-spec connector version can be specified, including all contact arrangements based on MIL-DTL-38999, -26482 and -5015, miniature Glenair Mighty Mouse, Omnetics plus all others. All hermetic feedthru connectors use gold or silver plated copper alloy contacts and insulated plated stranded copper conductor wires for maximum electrical performance and amperage rating. See below list of current design drawings. Mark up for any changes or supply your own hermetic connector design requirements for review and quoting.
Use your keyboard’s shortcut ctrl+ F buttons to bring up your browser’s find dialog box to then enter and go directly to a particular part-drawing #.
| Installation Port | MIL-C-Series # Ref | Total Pins/Wires | PAVE Description Codes, Housing & Wires | Wires 1 | AWG # | Wires 2 | AWG # | PART-DRAWING # |
|---|---|---|---|---|---|---|---|---|
| ¾” o-ring face seal | 38999 hermetic connector | 13 | VS12L-AL-150-13-TE22-27508P-48 See Quick Ship List | 13 | 22 | 1666 | ||
| 7/16″ straight thread | 26482 | 2 | SO7L-SS-150-2-TZ20-3112P-48 | 2 | 20 | 4005 | ||
| 13.61mm face seal | 2 | VS7-ZA-80-2-TZ26-BUTTON SWITCH-13.8 | 2 | 26 | 4155 | |||
| 13.61mm face seal | submersible | 2 | VS7-ZA-80-2-TZ26-BUTTON SWITCH-13.8 | 2 | 24 | 4094 | ||
| 13.61mm | 2 | VS7-ZA-80-2-TZ24-Button Switch-12 | 2 | 24 | 3206 | |||

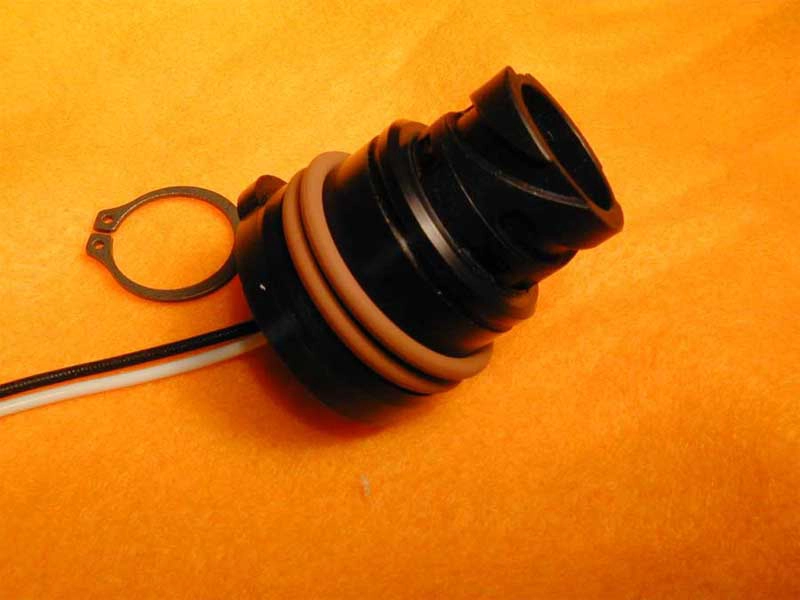

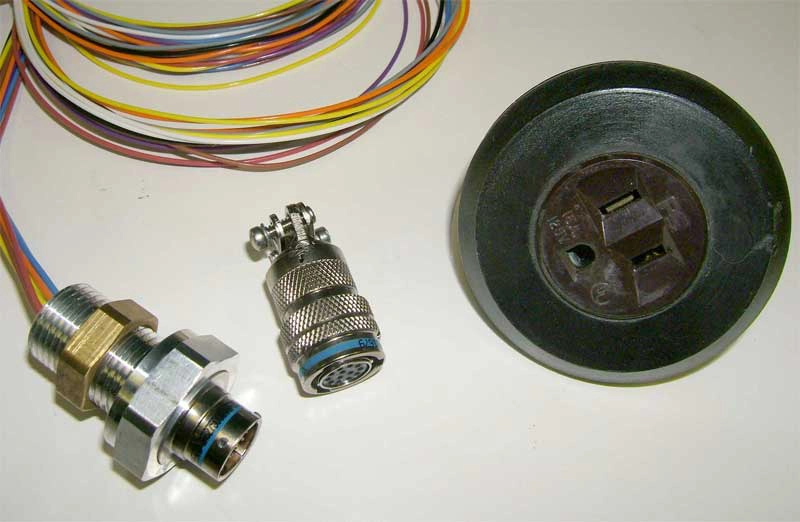

| 29mm piston o-ring | Hummer transmission seal | 2 | SP23Y-E-150-2-TE16-COIL5-DIN72585 | 2 | 16 | 16 | 2416 | |
| 1-⅝” o-ring face seal | 5015 hermetic | 2 | VS22-SS-150-2-TEE4-3102P-12 | 2 | 4 | 3690 | ||
| 1 5/8″ o-ring face seal | 5015 | 2 | VS22-SS-150-2-TZ4-SS3102P-36 | 2 #4 | #2 | 5682 | ||
| 1 1/2″ o-ring face seal | 5015 | 2 | VS32-SS-150-2-TE2-3102P-40 | 2 | 2 | 5734 | ||
| KF25 NW25 | 26482 | 3 | NW25-SS-150-3-16-3112E12-3P-P | 3 | 16 | 1694 | ||
| ½” -20 UNF-2A SAE | 3 | SO8-SS-150-3-#20CONX-SC, solder cups | 3 | 20 | 4249 | |||
| ½” NPT | 26482 hermetic connector | 3 | PT8-SS-150-3-20-16SC-3112S | 3 | 20 | 1211 | ||
| 1½” o-ring face seal | 26482 | 3 | VS8L-SS-150-1TSP-TE20-3112P-60 | 3 | 20 | 5053 | ||
| 1¼” o-ring face seal | 5015 | 3 | VS18-SS-150-3-TE12-3102P-24 | 3 | 12 | 4883 | ||
| 1″ o-ring face seal | 5015 | 3 | VS15L-SS-150-1-PVC3C12-31029-9 | 3 | 12 | 4892 | ||
| 1″ o-ring face seal | 5015 hermetic connector | 3 | VS15L-SS-150-3-TEE12-3102P-48 | 3 | 12 | 1409 | ||
| 1-⅝” o-ring face seal | 5015 | 3 | VS22-SS-150-3-TEE12-3102S-48 | 3 | 12 | 5376 | ||
| 1⅜” o-ring face seal | glove box wall receptacle | 3 | VS22-E-150-3-15A power cord receptacle | 3 | 16 | 0267 | ||
| 1 7/8″ o-ring face seal | UL, cUL | 3 | VS26-E-150-3-20A NEMA 5-20R 20 amps | 3 | 12 | 5071 | ||
| 2.75″ Conflat flange | 4 | CF275/PT12-SS-150-4-TZZ10-TNM-360 | 4 | 10 | 5220 | |||
| 7/16″ -20 UNF-2A | 26482 | 4 | SO7L-SS-150-4-TE20-3112P-48 | 4 | 20 | 4406 | ||
| ½” piston o-ring | Nano connector | 4 | SP8M-E-150-4-HYT28-18-PLUG mates to 4970 | 4 | 28 | 4989 | ||
| ½” piston o-ring | Omnetics micro | 4 | SP8M-E-150-4-HYT28-18-RCPT | 4 | 28 | 4970 | ||
| 1⅝” face seal | 5015 hermetic | 4 | VS22-SS-150-4-TEE12-3102P-6 | 4 | 12 | 3562 | ||

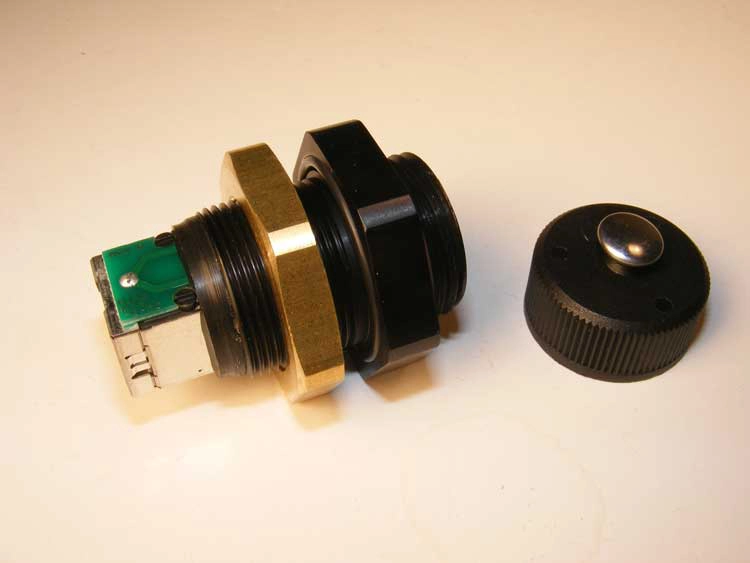

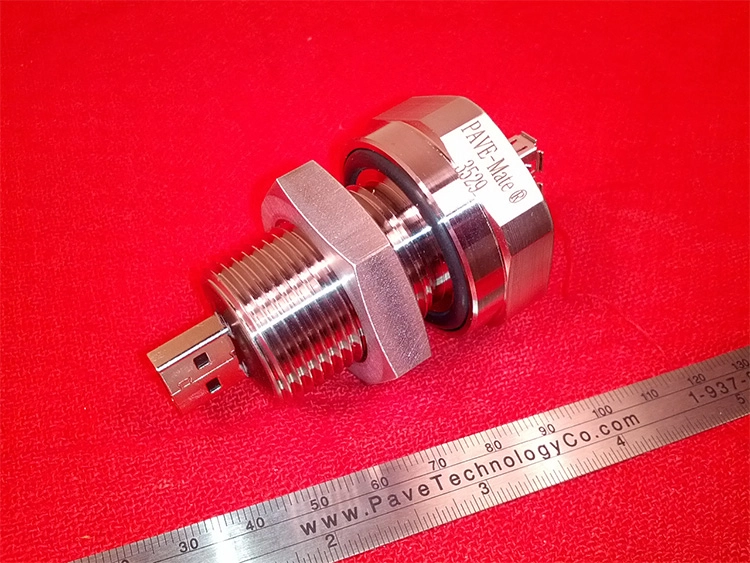

| ¾” SAE, 5k psi | USB type B | 4 | VSO12L-SS-150-1-miniBF-USB cable-24 USB | 4 | USB | 3645 | ||
| ½” o-ring face seal | Fischer DG Series | 4 | VS8SX-SS-150-4-TZ24-6- QD | 4 | 24 | 3807 | ||
| ½” o-ring face seal | Fischer DG Series | 4 | VS8SX-SS-150-4-26-SC-QD | 4 | 26 | 2873 | ||
| 1.25″ o-ring face seal | 26482 | 4 | VS18-SS-150-4-HTTG14-3112P-240 | 4 | 14 | 5049 | ||
| Custom flange mount | Hirose hermetic | 6 | FL1741-SS-150-3TP-TE26-RM12BRD-15 | 6 | 26 | 1745 | ||
| NW25 flange | 26482 hermetic connector | 6 | NW25-SS-80-6-20-3112E10-6P-P | 6 | 20 | 1695 | ||
| ¼” NPT | 26482 hermetic connector | 6 | PT4S-SS-150-6-20-3112P(SOC) | 6 | 20 | 0949 | ||
| ½” SAE | custom submersible connector | 6 | SO8M-SS-150-6-24-QD-SC | 6 | 24 | 1922 | ||
| 9/16″-18 UNF-2A | 26482 | 6 | SO9X-AL-200-6-TZ22-3112P-24 | 6 | 22 | 5415 | ||
| ¾” o-ring face seal | 38999 hermetic connector | 6 | VS12-SS-200-6-TE22-27508P-24 | 6 | 22 | 4213 | ||
| ¾” o-ring face seal | 38999 hermetic connector | 6 | VS12-AL-150-6-TE22-27508P-8 | 6 | 22 | 2168 | ||
| 14,30 mm | Mighty Mouse | 7 | FL9-SS-150-7-TZ28-FLB-12 1500 psi | 7 | 28 | 5305 | ||
| 1″ o-ring face seal | 38999/4 hermetic connector | 7 | VS15L-SS-150-7-20-SC-40FB99PN | 7 | 20 | 1537 | ||
| Electron beam laser weld | 26482 | 8 | FL24-AL-200-8-TE12-3470LP-20 laser weld | 8 | 12 | 4889 | ||
| NW50 flange | 26482 hermetic connector | 8 | NW50-SS-150-4/1/3-TE12/14/16-72-771L18S | 5 | 12 | 3 | 16 | 3543 |
| ½” NPT | 38999/3 hermetic connector | 8 | PT8-SS-150-8-TE26-99920P-36 | 8 | 26 | 3168 | ||
| 1¼” o-ring face seal | 26482 hermetic connector | 8 | VS18-SS-150-8-PC16-3112P-24 | 8 | 16 | 3263 | ||
| 1¼” o-ring face seal | 26482 hermetic connector | 8 | VS18-SS-150-8-TEE16-3112P-24 | 8 | 16 | 2666 | ||
| 1⅝” o-ring face seal | 5015 hermetic connector | 8 | VS22-SS-200-8-TEE12-3102P-24 | 8 | 12 | 1335 | ||
| 1⅝” o-ring face seal | 38999/3 hermetic connector | 8 | VS22-SS-200-8-TEE8-99920P-300 & 265FJ8S-8-TEE8-120 | 8 | 8 | 2203 | ||

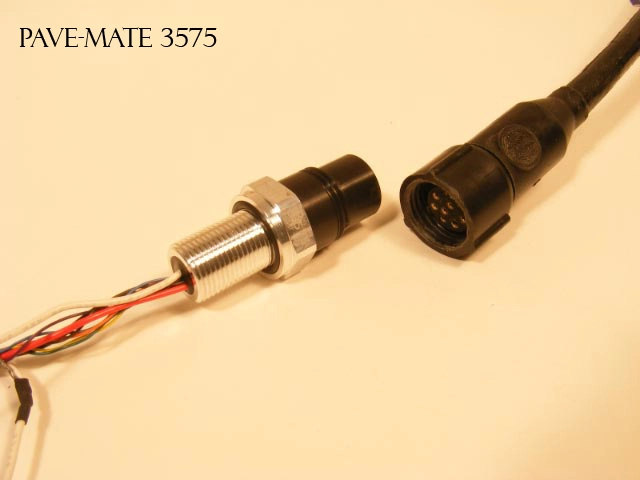

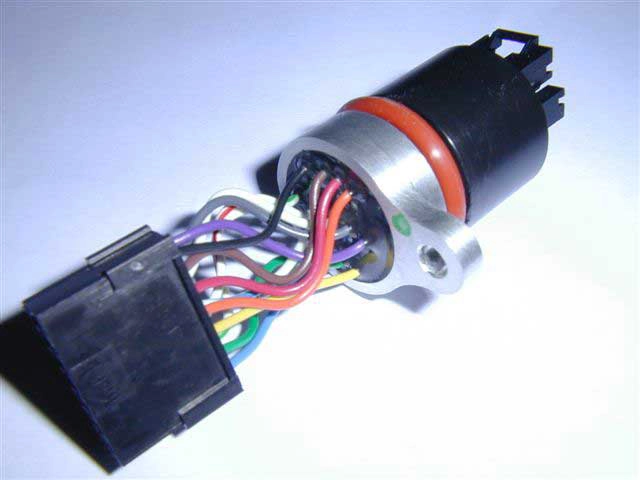

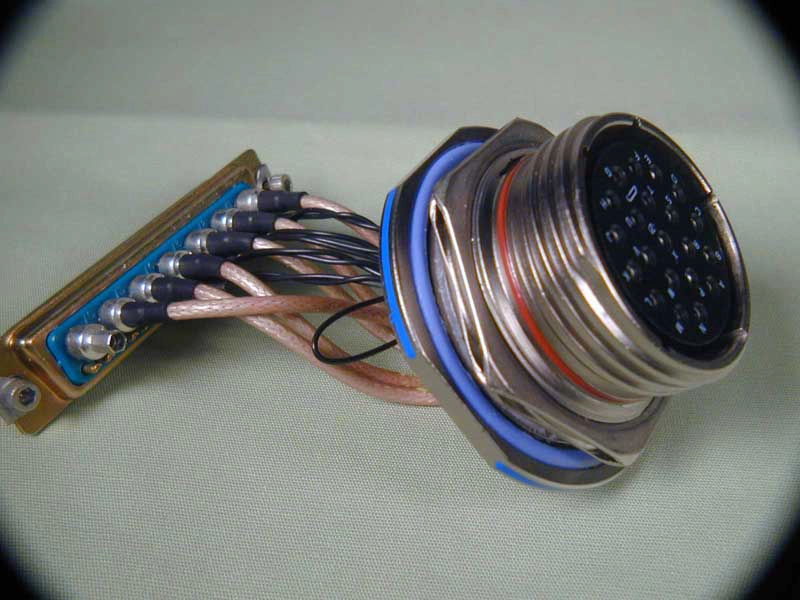

| ¾” o-ring face seal | custom submersible | 9 | VS12L-AL-150-3/6-18/26-RCPT-20 | 3 | 18 | 6 | 26 | 3575 |
| 1″ NPT | BIW connector | 10 | PT16-SS-150-10-EE16-126-BIW12# | 10 | 16 | 2934 | ||
| ¾” piston o-ring | MM | 10 | SPF12-AL-150-10-TE24-MMPPP-12, 1500 psi | 10 | 24 | 4250 | ||
| 1⅙” SAE | 26482 hermetic connector | 10 | SO16-SS-80-10-TE20-3112S-360(NP) | 10 | 20 | 2555 | ||
| 1″ o-ring face seal | 26482 hermetic connector | 10 | VS15L-SS-80-10-TE20-3112P-36 | 10 | 20 | 1585 | ||
| 2¾” Conflat flange | 38999/2 hermetic connector | 11 | CF275-SS-150-11-TE12-18-27508P(V) | 11 | 12 | 2432 | ||
| KF25 NW25 flange | Hirose | 11 | NNW25L-AL-150-9/2-TE28/26-116T-HR30 | 9 | 28 | 2 | 26 | 4993 |
| NW KF 25 flange | Hirose | 12 | NW25-AL-150-9/2-TE28/26-36-HR30 | 9 | 28 | 2 | 26 | 4551 |
| 22.2mm piston o-ring | Mighty Mouse | 12 | SPF14-AL-150-3/2/1-TSP22/PC14/USB-2M803-23/9/36 | 3 TSP #22, 2 #15, 1 USB2 | 5364 | |||
| NW25 flange | 38999/2 hermetic connector | 13 | NW25-SS-150-13-22 | 13 | 22 | 3283 | ||
| KF NW 50 flange | 38999 series 3 | 13 | NW50-SS-150-13-TZ22-99926P-8T/20S inline | 13 | 22 | 5526 | ||
| 1″ piston 0-ring | AMP plastic connector | 13 | SP16E-N-150-13-PC22-MOLEX-1 | 13 | 22 | 2865 | ||
| 1″ o-ring face seal | 38999/4 hermetic connector | 13 | VS15L-SS-150-13-40FB35PC-SC | 13 | 22 | 1542 | ||
| 1⅝” SAE | 5015 hermetic connector | 14 | SO22-PS-105-14-PC16-3102S-54 NP | 14 | 16 | 548 | ||
| ⅝” o-ring face seal | 38999/1 submersible | 16 | VS10-ss-150- | 15 | 24 | 1 | coax | 1456 |
| 38.3mm o-ring face seal | 38999/3 hermetic connector | 16 | D38999/23Y*-E-150-6/10-RG179/TZ24-P247PS1 | 16 | 20 | 2635 | ||
| 1⅝” o-ring fae seal | 38999/4 hermetic connector | 16 | VS22-SS-150-16-RG316-240-40FG1 | 16 | rg316 | 3199 | ||
| 1⅝” o-ring fae seal | 38999/4 hermetic connector | 16 | VS22-SS-150-16C-RG179-240-40FG | rg179 | 2887 | |||
| 66mm piston o-ring | 38999 Series 3 | 16 | SPF43-AL-150-16-TEE16-99920P-12 | 16 | 4000 | |||
| 1¼” piston o-ring | custom hermetic connector | 17 | SP20-E-150-16/1-COAX/TE24-#22P-18 | 16 | 1 | coax | 2948 | |
| 1¼” o-ring face seal | 26482 hermetic connector | 18 | VS18-SS-150-18-TE20-3112P-120NP | 18 | 20 | 1672 | ||
| 1¼” o-ring face seal | 26482 hermetic connector | 19 | VS18-SS-150-19-TE20-3112S-120NP | 19 | 20 | 1607 | ||
| 1″ o-ring face seal | Mighty Mouse | 19 | VS15L-SS-150-19-TEE22-72-2M803P | 22 | 5629 | |||
| NW50 flange | 26482 hermetic connector | 21 | NW50-SS-150-15/6-TE20/TE16-72-771L22S | 15 | 20 | 6 | 16 | 3542 |

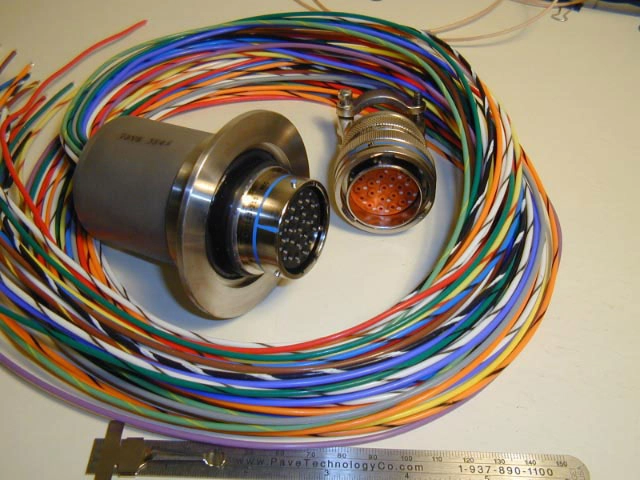

| NW50 flange | 26482 hermetic connector | 21 | NW50-SS-150-21-TEE16-72-771L22S16 | 21 | 16 | 3544 | ||
| ¾” SAE | 38999/4 hermetic connector | 22 | SO12L-316SS-22-TE26-20KC35SN-40 | 22 | 26 | 1393 | ||
| 1″ o-ring face seal | 38999/4 hermetic connector | 22 | VS15L-SS-150-22-TE22-180-40FC35PN | 22 | 22 | 1539 | ||
| 1″ o-ring face seal | 38999/4 hermetic connector | 22 | VS15L-SS-150-22-TE22-180-40FC35SN | 22 | 22 | 1541 | ||
| 1¼” piston o-ring | Custom AMP solder cup | 26 | SPF20L-AL-150-26-20-PC01-SC | 26 | 20 | 2608 | ||
| 1.25″ o-ring face seal | 26482 | 26 | VS18-SS-150-26-20-3112P-SC | 26 | 20 | 5048 | ||
| 1¼” o-ring face seal | 26842 hermetic connector | 26 | VS18-SS-150-26-TEE20-3112P-36NP | 26 | 20 | 1876 | ||
| Epoxy bonded | 26483 hermetic connector | 27 | PCB 27 PINS NICOMATIC | 27 | 30 | 2506 | ||
| NW50 KF50 | 38999 Series II | 28 | NW50-SS-150-18/8/2-TE22/18/16-27466P-36 | 18 | 22 | 10 | 18 | 4952 |
| 2 1/2″ o-ring face seal | DVI dual link | 29 | VS32-SS-150-1-P562006-DVIDF-69DVIDM | 29 #28 | 28 | 5685 | ||
| NW50 KF50 | 38999 Series II | 31 | NW50-SS-150-31-TE24-27466S-36 | 31 | 24 | 4951 | ||
| ½” o-ring face sel | nano | 32 | C64-AL-150-32-32-C64-1 nano | 32 | 32 | 3831 | ||
| 1″ NPT | 26484 hermetic connector | 32 | PT16-SS-200-10TSP-TE20-3471P-96 | 32 | 20 | 1995 | ||
| 25.1mm piston o-ring | custom submersible connector | 37 | PLUG-E-150-18/1-COAX/TE16-#22P | 37 | 22 | 3298 | ||
| 1½” o-ring face seal | 5015 hermetic connector | 37 | VS32-SS-150-37-TEE16-36-3102P | 37 | 16 | 4815 | ||
| 2 1/2″ o-ring face seal | 5015 | 37 | VS32-SS-150-37-TEE16-36-3102S | 37 | 16 | 5032 | ||
| 1⅞” o-ring face seal | 26482 hermetic connector | 40 | VS26-SS-200-41-20TPS-3112P-300 & MS3475L2>0-20TPS-120 | 40 | 20 | 2206 | ||
| 1½” NPT | 26482 hermetic connector | 41 | PT24-PS-150-41-TE20-3112P-72 | 41 | 20 | 1751 | ||
| 1⅝” o-ring face seal | 26482 hermetic connector | 41 | VS22-SS-150-41-20-3112S-48 | 41 | 20 | 1769 | ||
| 2 1/2″ o-ring face seal | 5015 | 48 | VS32-SS-150-48-TEE16-3102S-24 1500 psi | 48 | 16 PTFE | 5663 | ||
| 1½” NPT | 26482 hermetic connector | 55 | PT24-PS-150-55-TE24-3112P-60 | 55 | 24 | 3114 | ||
| 41.40mm laser port | 26482 | 55 | FL30-AL-200-55-TE20-3112P-18 laser weld | 55 | 20 | 4913 | ||
| 1¼” o-ring face seal | 26482 hermetic connector | 55 | VS18-SS-150-55-TE22-180-40FE35 | 55 | 22 | 2882 | ||
| 1⅝” o-ring face seal | 26482 hermetic connector | 55 | VS22-SS-150-55-TEE20-3112P-24 | 55 | 20 | 2201 | ||
| 1⅝” o-ring face seal | 38999 series III | 66 | VS22-SS-150-66-TE22-180-99920P | 66 | 22 | 5759 | ||
| 1⅝” o-ring face seal | 38999/4 hermetic connector | 66 | VS22-SS-150-66-TE22-180-40FF35 | 66 | 22 | 2886 | ||
| 1⅝” o-ring face seal | 38999 series 3 | 79 | VS22-SS-150-79-TZ28-99920P-100 | 79 | 28 | 4447 | ||
| 1.64″ | D38999 series 3 | 145 | D38999/23-AL-150-145-30-PCB PINS | 145 | 30 | 4734 | ||
| 1⅞” o-ring face seal | 38999 series 3 | 126 | VS26-SS-150-40-330FTE-900-9992 Vishay strain gage cables | 126 | 26 | 4506 | ||
| 1⅝” o-ring face seal | 38999/2 hermetic connector | 79 | VS22-SS-150-79-TE22-27508<10 | 79 | 22 | 1953 | ||
| 1⅝” o-ring face seal | 38999 Series # | 79 | VS22-SS-150-79-TZ28-99920P-100 | 79 | 28 | 4447 |
